VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Plantation, FL | TruePane Windows & Doors

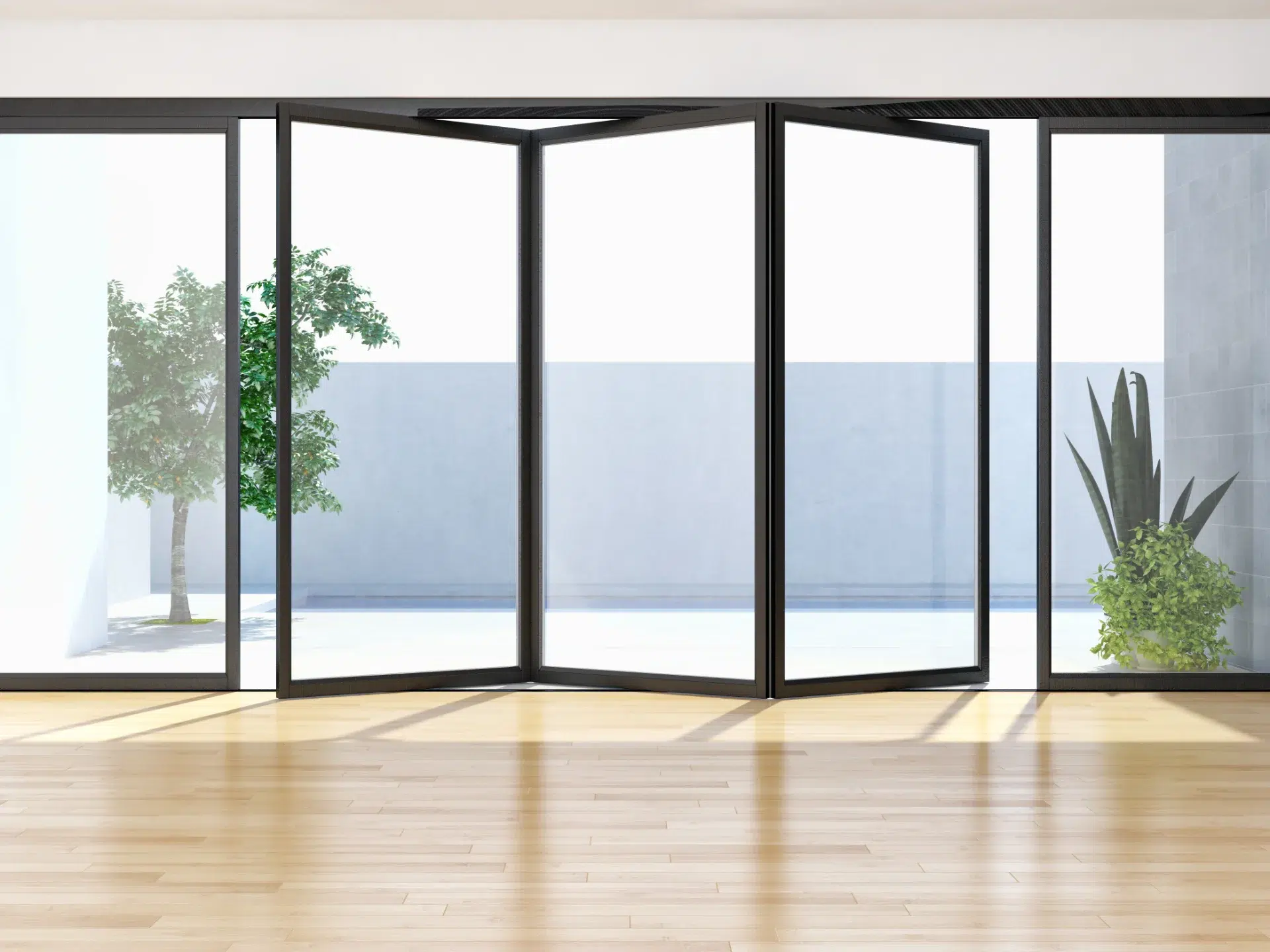

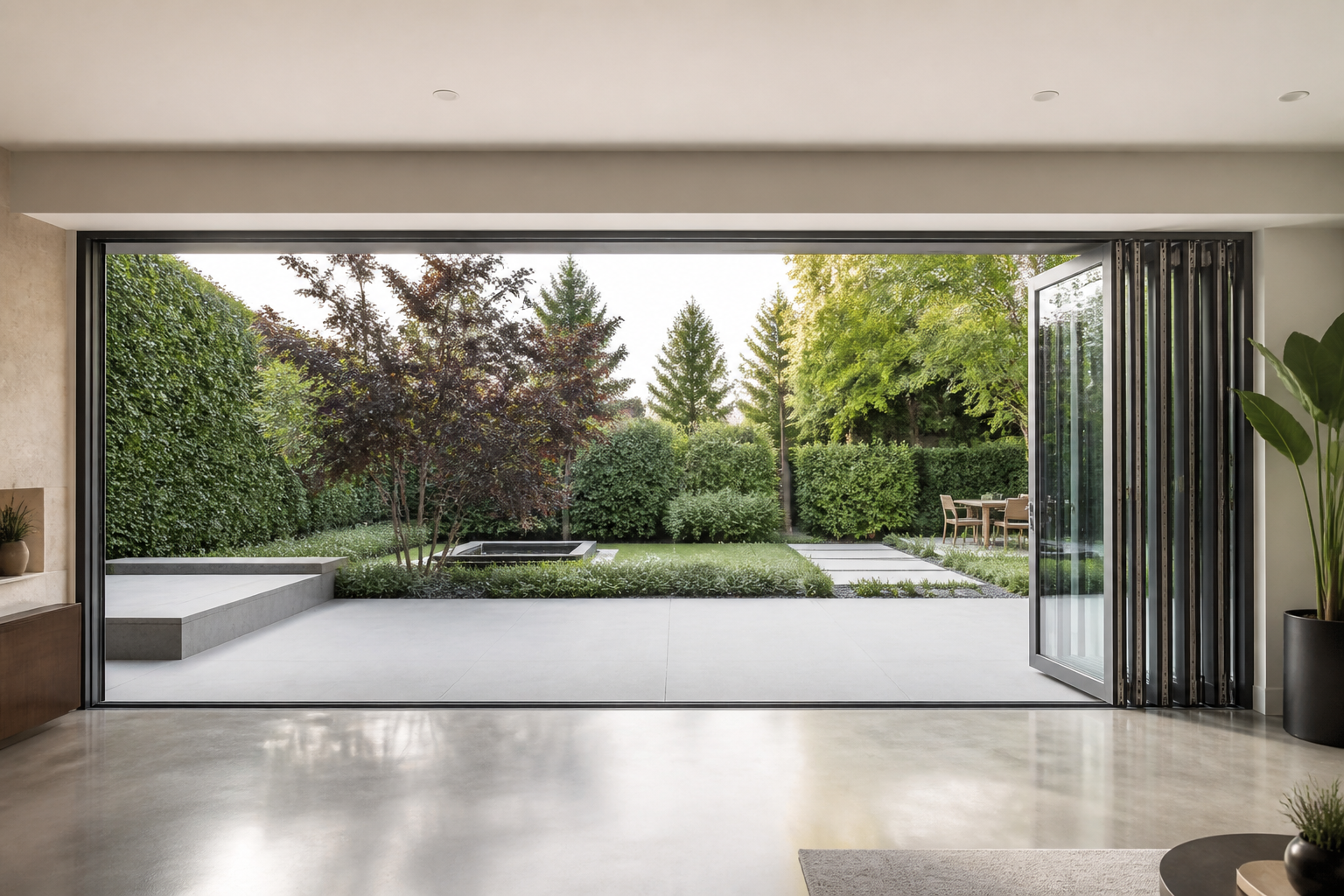

The VLX 100 Bifold Door is an accordion-style aluminum system that folds panel over panel to open up an entire wall, usually up to 20 feet wide. Plantation homeowners choose it when they want the boundary between a living room and a lanai, a kitchen and a pool deck, or a dining area and a garden to simply disappear. TruePane Windows & Doors is an authorized installation partner for the manufacturer of the VLX 100. That means you get factory-backed product support and an installation crew in Plantation, FL that follows AAMA 2400/2410 standards on every job. If you’re pricing a bifold for your home, call (772) 577-2915 for a free, no-pressure estimate and we’ll walk you through sizing, glass, and finish options.

Call (772) 577-2915

Product Overview - VLX 100 Bifold / Folding Door

The VLX 100 is built around a simple idea: a door system that stacks to the side and lets the outside in without a post in the middle of your view. Unlike sliding doors that always leave one panel fixed, a bifold folds every panel away. In a Plantation ranch-style home, that can mean opening a 16-foot span between your family room and covered patio so completely that the two spaces feel like one room. You can read ViewLux’s design philosophy as a nod to mid-century Florida architecture: flat sightlines, slim aluminum profiles, and glass doing most of the work.

Why this series specifically? Because it balances profile strength with visual lightness. The aluminum extrusions are engineered to carry wide spans without the chunky framing you see on older folding systems. The panels ride on a track system that is configurable from 2 to 6 panels, which gives us flexibility when a Plantation home has an unusual opening width or a corner condition. We regularly spec the VLX 100 into homes built in the 1970s and 1980s around Jacaranda and Plantation Acres, where older sliding glass doors underperform in both looks and air sealing. The VLX 100 replaces them cleanly and upgrades the home’s energy profile at the same time.

The accordion-style aluminum bifold is not just a door. It’s a wall-to-wall opening that changes how you use your square footage. When panels are closed, you get a wall of glass with narrow sightlines. When they’re open, you get an uninterrupted passage. That dual function is why buyers treat this as a lifestyle upgrade, not a door replacement.

Technical Specifications

Here is how the VLX 100 Bifold / Folding Door is configured, in plain terms. These are the numbers we quote from when we measure a Plantation home:

• Maximum opening width: up to 20 feet across, depending on panel count and wind-load requirements for Broward County.
• Panel configurations: 2-panel, 3-panel, 4-panel, 5-panel, or 6-panel tracks.

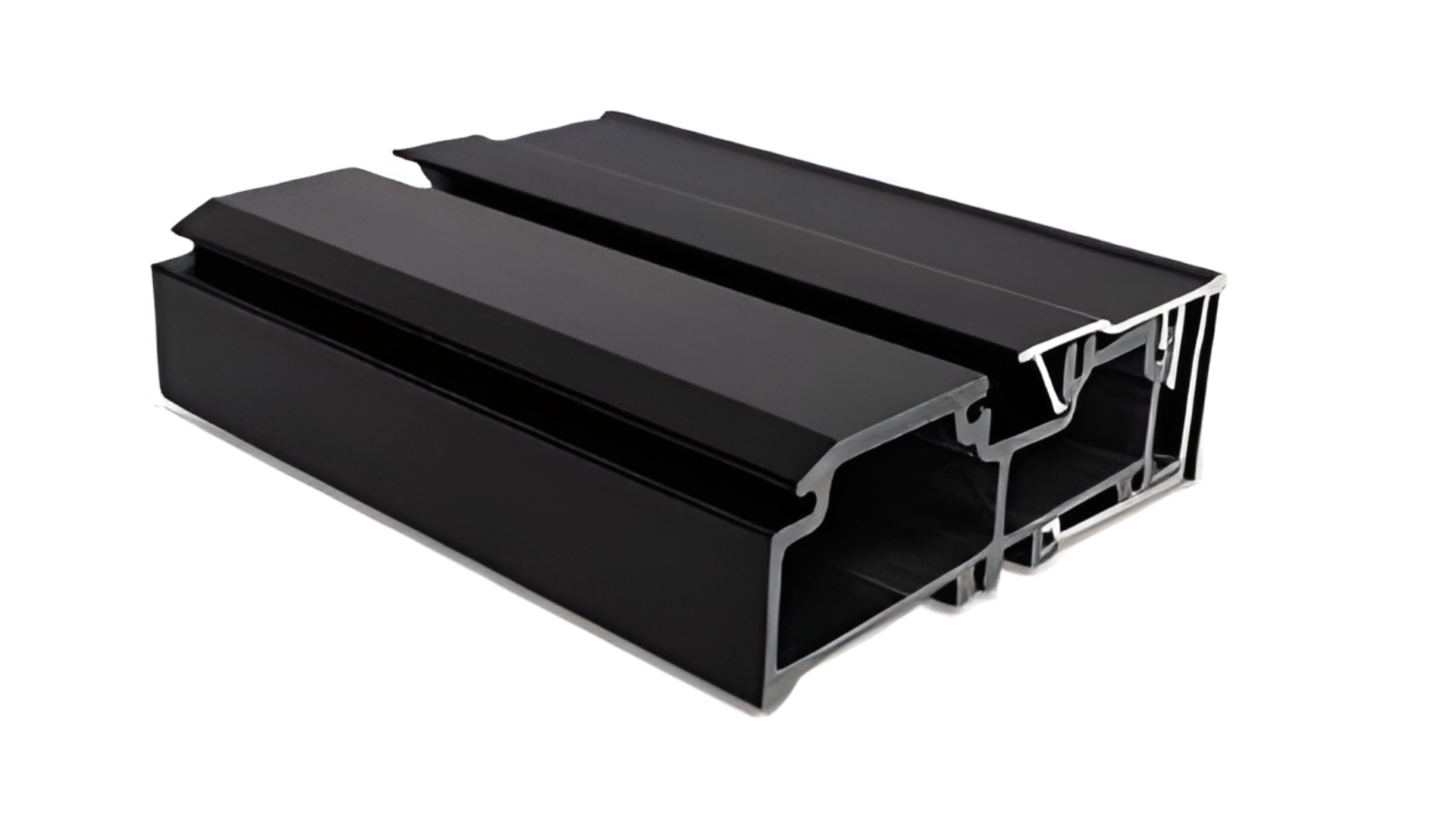

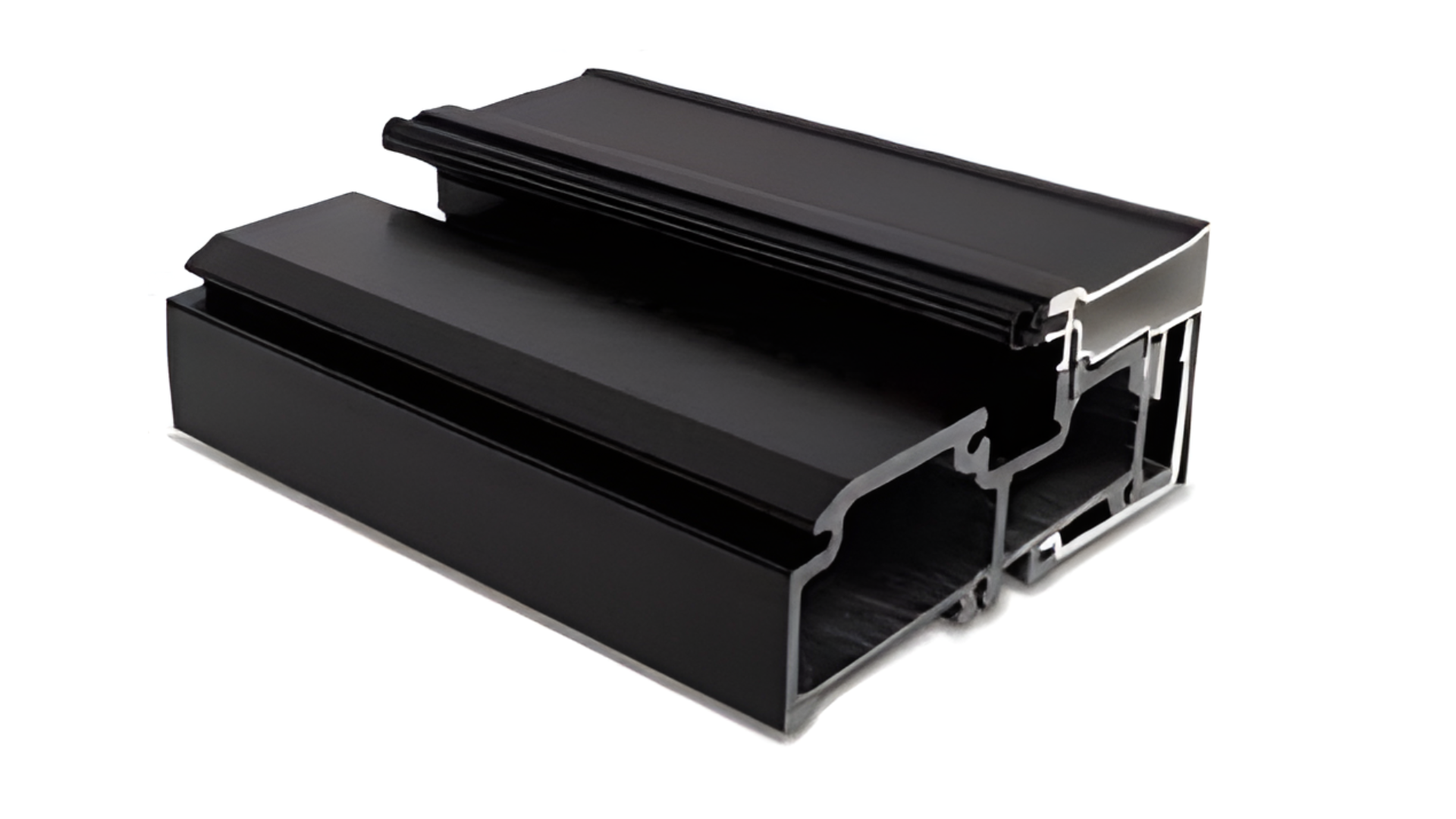

• Frame depth: 2.56-inch profile width, slim enough to preserve sightlines but deep enough to hold laminated impact glass.
• Aluminum wall thickness: 0.098 inches, which gives the extrusions rigidity without the industrial bulk.
• Glass types: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable Screen, or no screen.
• Performance compliance: NFRC-rated thermal performance, AAMA 2400/2410 installation standard, AAMA 812 low-expansion foam sealant on every perimeter joint.

All spec sheets we provide to Plantation customers reflect the exact configuration quoted, not a generic brochure. If you need a permit submission package for the city, we can include the relevant product data sheets.

Performance Features

Thermal Efficiency
Aluminum conducts heat, which is why the VLX 100 uses a thermal break inside the extrusions. That break interrupts heat transfer through the metal and brings the door into NFRC-rated energy performance territory. In Plantation’s summer months, that means less heat bleeding into your air-conditioned space and lower cooling loads along the glass wall. Low-E glass adds another layer of solar control.

Acoustic Performance
Folding doors leak sound at the seams if the panels do not seat tightly. The VLX 100 is built with interlocking panel joints and adjustable hardware that let us compress the door leafs against the weatherstripping. For homes in Plantation near I-595, University Drive, or the Turnpike, that mechanical seal is what determines whether you hear traffic or not. Laminated glass further cuts noise transfer.

Airtightness & Weather Seal
Air infiltration is the most common complaint we hear about older folding doors in Plantation. The VLX 100 addresses this at the perimeter with AAMA 812 low-expansion foam sealant applied to every joint during installation, plus continuous gaskets and interlocking stiles. Airtightness is not a marketing term on this door. It is a measurable outcome of the sealing method and the install quality.

Waterproofing
South Florida afternoons bring sideways rain. The VLX 100 track system includes drainage channels and sill designs that direct water outward instead of into the house. We also verify slope and weep function during the install. Waterproofing on a bifold door depends as much on the threshold detail as the door itself, which is exactly where a Plantation-specific install crew matters.

Wind Resistance
Broward County sits in a High Velocity Hurricane Zone. The VLX 100 is wind-load rated for local climate requirements when ordered with impact-resistant laminated glass and the appropriate panel configuration. We confirm the required design pressure per opening before quoting, so the door you buy matches what Plantation’s building department expects to see.

Security & Hardware
The VLX 100 comes with multi-point locking at the lead panel and flush bolts on secondary panels. Hardware is accessible from the interior and configured so the door locks in the closed position as a full wall. Because every panel is aluminum with a 0.098-inch wall thickness, the system resists prying better than many vinyl or wood folding doors.

Color & Glass Options

Premium Black is the most requested finish for modern and transitional homes in Plantation, especially around Plantation Acres and newer construction west of Nob Hill Road. It reads sharp against white stucco and light porcelain tile. Pure White suits traditional Florida interiors where the door should blend into the wall. Anodized Silver gives a machined, architectural look, while Bronze is the quieter choice for homes with earth-tone exteriors. Champagne sits between silver and bronze and works well with warm metal hardware. Teak Wood is an aluminum finish that mimics timber grain, useful when a homeowner wants the warmth of wood without the maintenance of a real wood door in Plantation’s humidity.

Glass choices depend on orientation and exposure. Clear glass maximizes light but gives little heat rejection. Low-E is our default recommendation for east- and west-facing openings in Plantation because it cuts solar gain without noticeably darkening the room. Tempered glass is required by code for safety glazing in most door applications. Laminated glass is the impact-rated option for hurricane protection and also reduces noise. Gray Tint and Black Tint shift the aesthetic toward a smoked look and add privacy from neighbors at close lot lines, common in older Plantation neighborhoods like East Plantation.

Installation by TruePane Windows & Doors in Plantation

We are the crew that actually sets the door. TruePane Windows & Doors performs every VLX 100 installation in Plantation with our own installers, not subcontractors. The process starts with a pre-install inspection of the rough opening. We check the header, the subfloor, and the existing water barrier before we bring a single panel to the site. Then we set the frame level, plumb, and square. On a 20-foot bifold, being off by an eighth of an inch at the jamb turns into a panel that drags or a lock that will not engage.

Every perimeter joint gets AAMA 812 low-expansion foam sealant. That is the standard for sealing aluminum window and door systems, and we do not skip it on the bottom track or the head. The full installation follows AAMA 2400/2410 guidelines, which covers shimming, anchoring, flashing, and joint sealing. After the panels are hung and adjusted, we run a water test at the sill and check every panel’s travel. Then we clean the glass, remove debris, and walk you through how to operate and lock the system.

Why this matters in Plantation specifically: our climate combines high humidity, daily temperature swings, and hurricane-season wind. A door that is installed without proper flashing will fail at the threshold within a few years. And here’s the part most homeowners don’t realize: improper installation voids the manufacturer warranty on the VLX 100. ViewLux warrants the product, but the warranty assumes a competent installation. We install as an authorized ViewLux partner, so your warranty stays intact and your door performs the way it was engineered to.

Frequently Asked Questions - VLX 100 Bifold / Folding Door

Get a Quote - VLX 100 Bifold / Folding Door in Plantation

If you’re ready to see what the VLX 100 would cost in your Plantation home, start with a free on-site measurement. We’ll come to your house, check the opening, confirm wind-load requirements, and send a written line-item quote with no pressure and no surprise add-ons. Pricing changes based on panel count, glass, and finish, so you get a real number, not a ballpark. Call (772) 577-2915 to schedule your free estimate, or ask us to send product data sheets before we visit.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Plantation, FL.
