Geometric and shaped windows turn an ordinary wall into the focal point of a room. Triangles above a front entry, a hexagon anchoring a great room, an arch topping a hallway: these are the openings that give Plantation homes their character. TruePane Windows & Doors fabricates these profiles in impact-rated glass so you don’t have to choose between architectural detail and wind-zone protection. We install across PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, and we’ve been setting custom geometry in Plantation homes long enough to know what the local wind zone demands. Call (772) 577-2915 to talk through your opening.

Call (772) 577-2915

Product Overview - Geometric & Shaped Windows

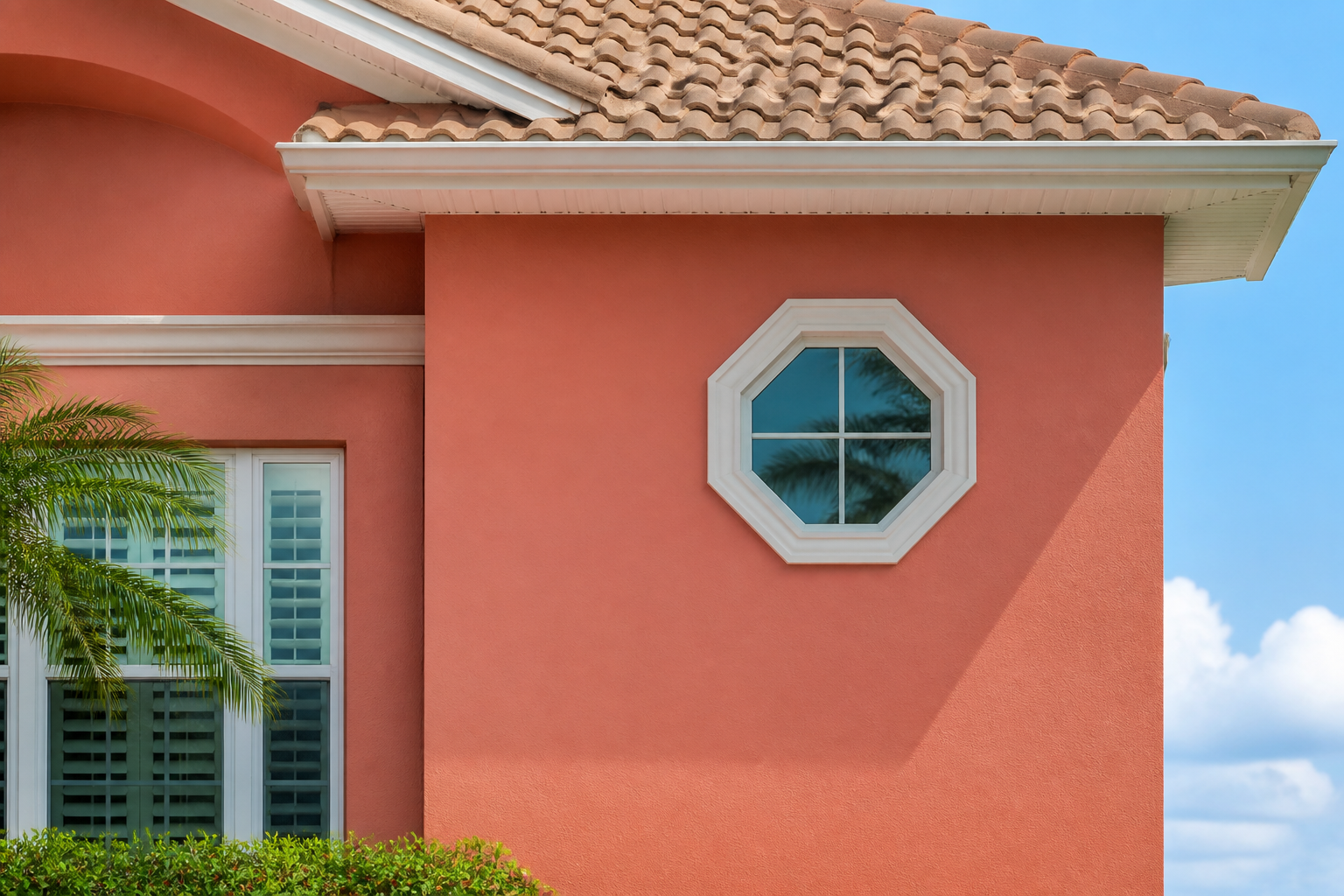

Geometric and shaped windows are exactly what the name suggests: triangular, hexagonal, octagonal, arched, radius, and trapezoid impact-glass configurations built to the dimensions of your rough opening. They’re custom-fabricated to order, which means there’s no stock size to squeeze into, and no awkward filler framing around the glass. In a hurricane-prone market like South Florida, the appeal is obvious: you keep the architectural statement, and you keep the wind-zone protection. The laminated impact glass in these units is the same PVB-interlayer construction we use in our standard impact windows. The frame is the difference. Each unit is engineered around its geometry, so the corner joinery, glazing channel, and anchoring points all hold to Florida Building Code High-Velocity Hurricane Zone requirements. We see these in Plantation’s gated communities and older neighborhoods alike: eyebrow arches over bathroom vanities, octagons in cathedral ceilings, triangle transoms above French doors. The design intent varies, but the engineering requirement doesn’t. TruePane Windows & Doors specs every shaped unit through the manufacturer’s configuration system, so the physics are resolved before the glass is cut.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected for the profile and exposure of your Plantation opening.
• Maximum size: Custom fabricated to order; no stock dimensions apply. Each opening is measured, templated, and built to spec.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass.
• Finish options: White, almond, bronze, black, tan.
• Geometry: Triangular, hexagonal, octagonal, trapezoid, radius, and arched configurations.
• Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration; engineered to FBC HVHZ requirements.
• Design pressure: Matched to your wind zone, up to +/-100, never higher.

Hurricane & Compliance Performance

Laminated Impact Glass. The glass package uses a PVB (polyvinyl butyral) interlayer that holds the glass in the frame under impact. When debris strikes, the glass cracks but doesn’t vacate the opening, so the building envelope stays closed through the storm.

Miami-Dade NOA / Florida Product Approval. Every geometric configuration carries its own Notice of Acceptance and Florida Product Approval numbers, issued per configuration. TruePane verifies the specific numbers on your quote so your Plantation permit application has the right documentation attached.

FBC / HVHZ Compliance. These units are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. That’s the governing standard for Broward County, where Plantation sits inside the HVHZ wind-borne debris region.

TAS 201 / 202 / 203 Testing Context. HVHZ-rated products are tested under the TAS protocol family: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. The product line is built within that testing context for shaped configurations.

Design Pressure for Your Wind Zone. Design pressures are matched to your specific Plantation wind zone, up to +/-100, never higher. We don’t overspec ratings beyond what your structure requires, because the correct spec is the one that matches the calculations for your lot and elevation.

Energy Performance. Low-E and insulated glass options are available on geometric configurations, which matters when a west-facing triangle transom in Plantation is baking in the afternoon sun. The right glass package keeps the glare and heat gain down without changing the look.

Color & Glass Options

White and almond frames read classic on Plantation’s Mediterranean and ranch-style homes, especially when the window is a triangle or radius over a front entry. Bronze and black lean more contemporary and pair well with darker fascia or modern stucco palettes. Tan splits the difference: warm enough for older Plantation neighborhoods around Broward Boulevard, clean enough for newer construction west toward Flamingo Road. On the glass side, clear laminated impact glass keeps the view unfiltered. Tinted glass cuts glare in south- and west-facing shaped openings. Low-E insulated glass adds thermal performance, which is worth considering on a large octagon or trapezoid that takes direct afternoon sun. TruePane walks through the glass selection with you at the measure, because the right choice depends on the orientation of the opening and how the room is used.

Installation by TruePane Windows & Doors in Plantation

Shaped openings fail at the perimeter, not the glass. That’s why we treat every Plantation install as a waterproofing and anchoring job first, and a window setting job second. We start with a pre-install inspection: we check the rough opening dimensions against the template, verify the subsill condition, and confirm the anchoring substrate around the opening is sound. Then we set the unit level, plumb, and square. On a triangle or trapezoid, small errors compound fast, so the shimming and anchoring sequence gets extra attention.

The perimeter is sealed with AAMA 812 low-expansion foam, then dressed with the flashing and sealant spec for the wall system. Our practice follows AAMA 2400/2410 installation standards. After the sealant cures, we run a water test on the perimeter before final trim goes back. Permit awareness matters in Plantation. The city sits in Broward County’s HVHZ jurisdiction, and a shaped window with a Miami-Dade NOA or Florida Product Approval number still needs the submittal package to match the specific configuration installed. We handle that documentation as part of the project. Improper installation compromises the NOA-rated system, which is why the spec sheet alone isn’t the safeguard. The hands that set the window are the safeguard. Call (772) 577-2915 to schedule a measure, and we’ll tell you exactly what your opening needs.

Frequently Asked Questions - Geometric & Shaped Windows

Get a Quote - Geometric & Shaped Windows in Plantation

If you’re planning a shaped opening in Plantation, or replacing an existing one that’s failed, start with a measurement. TruePane Windows & Doors will template the opening, spec the right configuration, and give you a line-item quote with the approval numbers attached. Call (772) 577-2915 to schedule your free on-site measurement today.

Written by the team at TruePane Windows & Doors, serving Plantation, FL with impact windows and doors since 2005.
