AfterVLX 100 Pivot Door in Plantation, FL | TruePane Windows & Doors

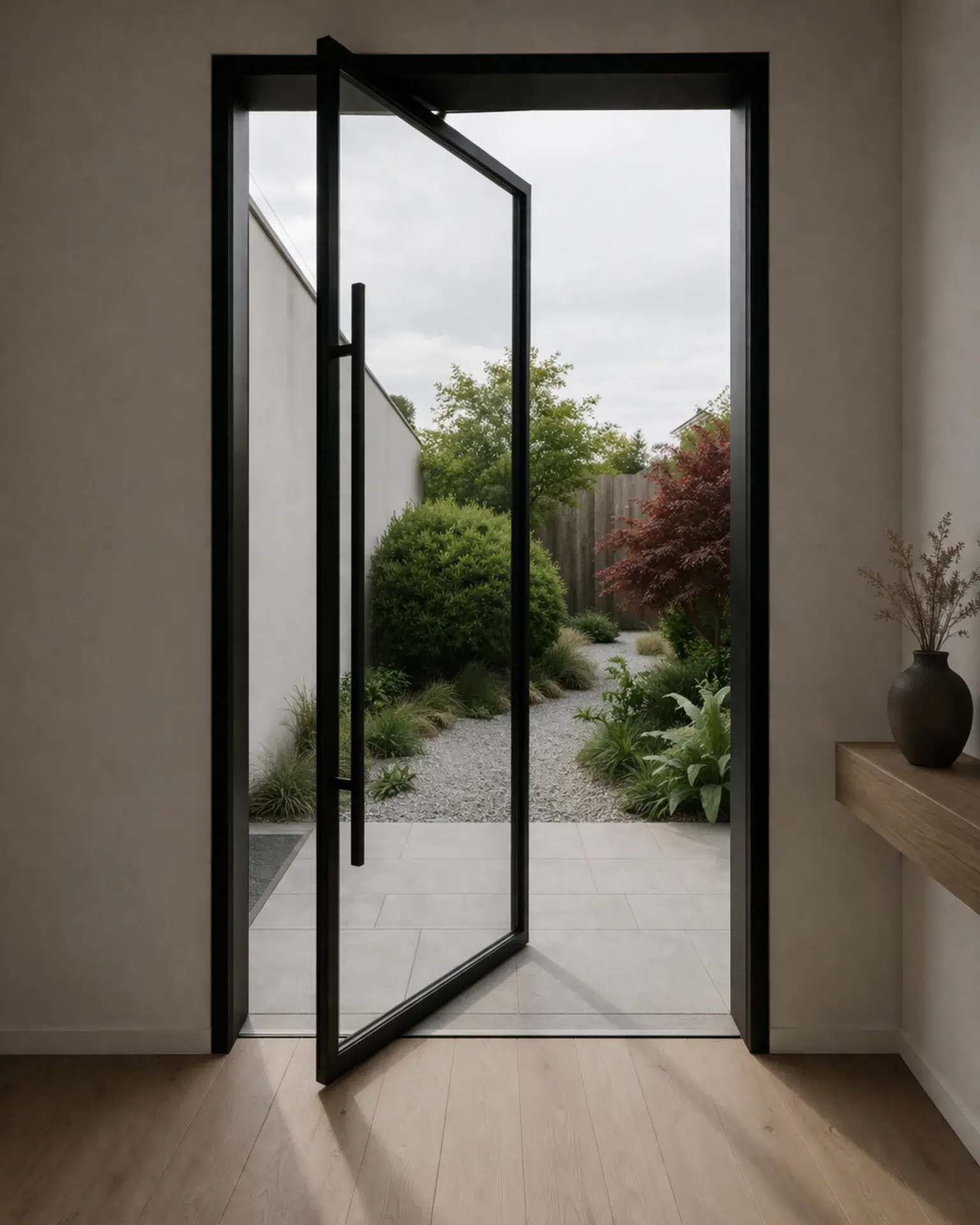

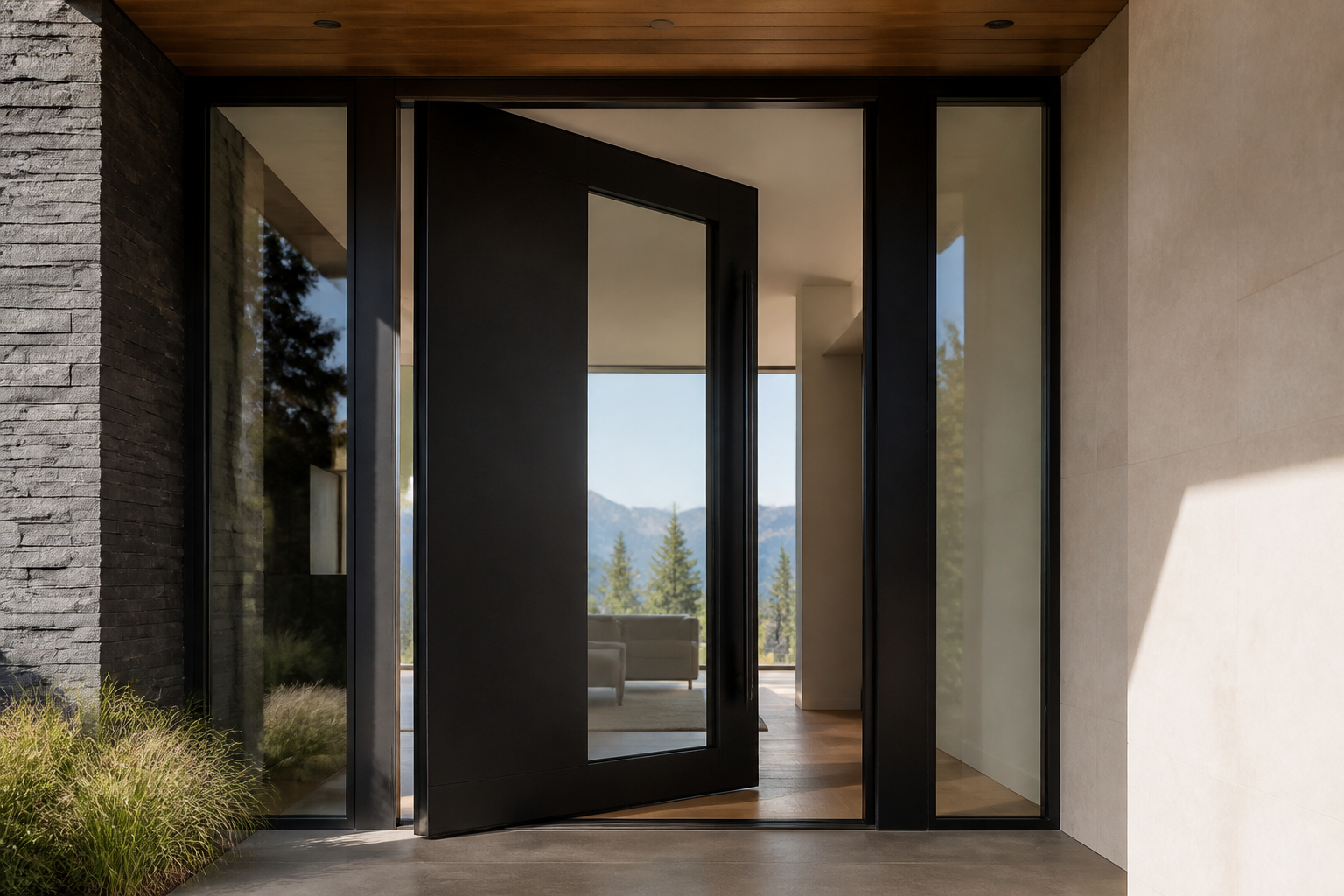

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis instead of traditional side hinges. It’s built for homeowners in Plantation, FL who want a true architectural centerpiece: an oversized glass panel, a clean aluminum frame, and a door that makes an entrance feel deliberate. TruePane Windows & Doors is an authorized ViewLux installation partner, which means we order direct from the manufacturer and install to factory spec here in Plantation, Broward County. If you’re pricing this door for a remodel or new build, call us at (772) 577-2915 for a free on-site measurement and written quote.
Product Overview - VLX 100 Pivot Door
Pivot doors are a different animal from what most homes in Plantation have. A standard hinged door swings on three or four hinges mounted to one jamb. A pivot door hangs the entire weight of the slab on a top and bottom pivot point, set in from the edge. That changes everything about how the door feels. A 60-inch-wide, 120-inch-tall slab that would sag or bind on traditional hinges opens smoothly on a pivot system because the load is distributed across a central axis.
The VLX 100 is engineered around that principle. The aluminum frame is extruded with a 2.56-inch profile width and a wall thickness of 0.098 inches, which is substantial enough to hold oversized laminated glass without flexing. This isn’t a slim-profile door pretending to be structural. It’s a load-bearing architectural element dressed up as a design statement.
Who buys this door in Plantation? Homeowners doing luxury renovations in Plantation Acres, mid-century modern tear-downs in Lauderdale West, and custom builds along the canals east of University Drive. The oversized glass option turns the door into a light source. The aluminum frame keeps it stable in Florida humidity where wood pivot doors swell and bind within a few seasons. If you’ve been looking at pivot doors and want one that will still operate cleanly in ten years, the VLX 100 is the conversation to have.
Technical Specifications
Here are the hard numbers for the VLX 100, as we order it from ViewLux for installation in Plantation:
- Frame material: Heavy-duty extruded aluminum, thermal-broken
- Profile width: 2.56 inches
- Wall thickness: 0.098 inches
- Maximum slab size: up to 60 inches wide by 120 inches tall
- Pivot mechanism: vertical center-axis rotation, floor and header mounted
- Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated (impact-rated laminated available)
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Thermal performance: NFRC-rated with thermal break technology
- Installation standard: AAMA 2400/2410 compliant
- Perimeter seal: AAMA 812 low-expansion foam on all joints
Maximum span means a slab up to 5 feet wide and 10 feet tall. Most single-door openings in Plantation homes are 36 to 48 inches wide, so the VLX 100 gives you room to go significantly larger if your wall framing and header allow it.
Performance Features
Thermal Efficiency. The VLX 100 uses a thermal break inside the aluminum profile, which separates the interior and exterior metal faces. Without it, an aluminum door in South Florida becomes a heat conductor all summer. With it, the door earns real NFRC ratings that keep your AC bill from spiking every afternoon in Plantation’s wet season.
Acoustic Performance. The combination of the thick 0.098-inch wall profile, proper perimeter sealing, and laminated glass gives the VLX 100 meaningful sound dampening. Homes near University Drive, Broward Boulevard, or the Turnpike notice the difference. Laminated glass is the best upgrade if road noise is a concern.
Airtightness & Weather Seal. Every joint around the frame is sealed with AAMA 812 low-expansion foam. The pivot hardware is set into properly flashed openings. The result is a door that doesn’t whistle in a summer storm and doesn’t let conditioned air escape through the perimeter. Airtightness is a spec, not a slogan.
Waterproofing. Florida gets 60-plus inches of rain a year, often sideways. The VLX 100 is installed with a full sill pan, perimeter flashing, and the AAMA 812 foam seal, then water-tested before we hand the door over. We’re not done until the threshold drains correctly and the interior is bone dry.
Wind Resistance. Plantation sits in Miami-Dade-adjacent wind zones. The VLX 100 can be spec’d with impact-rated laminated glass and is wind-load rated for local climate requirements. If you’re replacing an entry door on a home built after Hurricane Andrew code updates, we’ll make sure the door package meets current Broward County requirements.
Security & Hardware. A 60-inch pivot door needs real hardware, not builder-grade handlesets. The VLX 100 is prepped for multi-point locking hardware and adjustable pivot bearings. The aluminum slab itself is more resistant to kick-in attempts than a wood or fiberglass door of the same size.
Color & Glass Options
ViewLux offers the VLX 100 in six finishes. Premium Black is the most requested in Plantation right now, especially on white stucco modern and transitional homes where a dark door frame reads as intentional contrast. Pure White disappears into bright coastal interiors and suits a Key West-inspired exterior. Anodized Silver has a raw, almost industrial character that pairs well with exposed concrete and metal roofs. Bronze reads traditional and warm, a good fit for Plantation’s ranch homes and Spanish-influenced facades. Champagne is softer than silver, with a warm metallic tone that works in art deco and Miami modern restorations. Teak Wood is a powder-coat finish that mimics timber grain, for homeowners who want the look of a wood pivot door without the swelling and maintenance in Florida humidity.
Glass selection depends on where the door faces. Clear glass maximizes light and is fine for private interiors or screened entries. Frosted and Obscure glass give privacy while still passing daylight, popular for front entries in neighborhoods like Jacaranda where the door faces the street. Low-E glass cuts solar heat gain, which matters for west-facing doors that get pounded by afternoon sun. Tempered glass is the safety standard; laminated glass adds impact resistance and acoustic dampening, and is the spec we recommend for any Plantation home that wants the door itself to meet wind-borne debris requirements.
Installation by TruePane Windows & Doors in Plantation
Here’s the thing about pivot doors: the door is only as good as the installation. A pivot slab weighs hundreds of pounds. If the opening isn’t perfectly level, plumb, and square, the door will bind, drag, or settle out of alignment within months. And once a pivot door is out of alignment, it’s not a minor adjustment. It’s a full reset of the slab and the hardware.
That’s why we install the VLX 100 to the AAMA 2400/2410 standard, which governs the installation of exterior doors and fenestration products. Our process on every Plantation install looks like this:
- Pre-install inspection: we measure the rough opening at three points vertically and horizontally, check the floor for level, and verify the header can carry the slab weight.
- Setting the frame: the frame is shimmed and set level, plumb, and square before any fasteners go in. We don’t set a door on a floor that’s out of level and call it good.
- Perimeter sealing: every gap between the frame and the rough opening is filled with AAMA 812 low-expansion foam. Then the exterior joints are flashed and sealed with waterproofing that stands up to Broward County rain.
- Slab hanging: the pivot slab is set into the top and bottom pivot points, adjusted for even reveal gaps, and cycled open and closed until it moves cleanly.
- Water test: we run water across the threshold and perimeter before we leave. If water finds a path, we fix it before it’s your problem.
- Cleanup: all debris, fasteners, foam trimmings, and old door material removed from the property.
One more thing worth saying plainly: if a pivot door is installed improperly, ViewLux will not cover the damage under warranty. Misalignment, racked frames, and water intrusion from bad flashing are installer problems, not manufacturer defects. That’s the entire reason to have an authorized partner handle the install rather than a general handyman who’s hung a few entry doors. We order the door, we install the door, and we stand behind the door.
Frequently Asked Questions - VLX 100 Pivot Door
Lead time for the VLX 100 typically runs 4 to 6 weeks from order approval, depending on your glass and finish selections and the current ViewLux production schedule. Custom sizes and impact-rated laminated glass can push toward the longer end of that range. We give you a confirmed timeline when we quote the job, not a guess. Call (772) 577-2915 to get your order started and locked into the production queue.
The VLX 100 is NFRC-rated and can be configured with Low-E glass to meet the federal energy-efficiency criteria for exterior doors, but whether your specific configuration qualifies depends on the exact glass package and the door’s rating in your orientation. We’ll help you evaluate whether the door package qualifies during the quote process. Call (772) 577-2915 and we’ll walk through the options together.
The VLX 100 carries the manufacturer’s warranty from which covers defects in the aluminum profile, glass, and factory hardware. The warranty is only valid if installation is performed to AAMA standards by an authorized partner, which is exactly what TruePane Windows & Doors provides in Plantation. We also back our installation workmanship in writing. Call (772) 577-2915 for warranty details specific to your configuration.
Yes, within the maximum span of 60 inches wide by 120 inches tall. In practice, that covers nearly every single entry door scenario in a Plantation home, including oversized statement openings. Larger openings can be designed as a double-door or pivot-plus-fixed-panel configuration. We’ll measure on site and tell you what your framing can support. Call (772) 577-2915 to schedule a measurement.
Wash the frame and glass with mild soap and water a few times a year, especially if you live near a canal or on the coast where salt spray builds up. Check the pivot bearings annually for smooth operation and keep the bottom track and sill clear of debris. Florida humidity won’t corrode the aluminum, but it can deposit grime that wears the hardware over time. If a door ever feels stiff or starts making noise when it moves, don’t force it. Call our Plantation team at (772) 577-2915 and we’ll inspect it.
Get a Quote - VLX 100 Pivot Door in Plantation
The VLX 100 is not an inexpensive door, and it shouldn’t be installed by anyone who isn’t willing to show you their AAMA installation standards in writing. TruePane Windows & Doors serves Plantation and all of Broward County as an authorized ViewLux installation partner. We’ll measure your opening, spec the door, and give you a written line-item quote before you commit to anything. Call (772) 577-2915 to start your project or schedule a free on-site measurement. The measure is free and you’ll know exactly what the number is.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Plantation, FL.
