VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Plantation, FL | TruePane Windows & Doors

The VLX 500 Single & Double Hung Window is a classic vertical-glide aluminum window with tilt-in sashes for easy cleaning, manufactured by installed across Plantation by our team at TruePane Windows & Doors. Homeowners in Plantation Acres, Jacaranda, and the neighborhoods along Broward Boulevard choose this series when they want a window that opens easily, cleans from inside the house, and stands up to South Florida humidity without swelling, sticking, or rotting. As an authorized ViewLux installation partner, we handle sizing, ordering, and installation under one roof, so you’re never chasing multiple contractors. Call (772) 577-2915 to schedule a free measurement.

Call (772) 577-2915

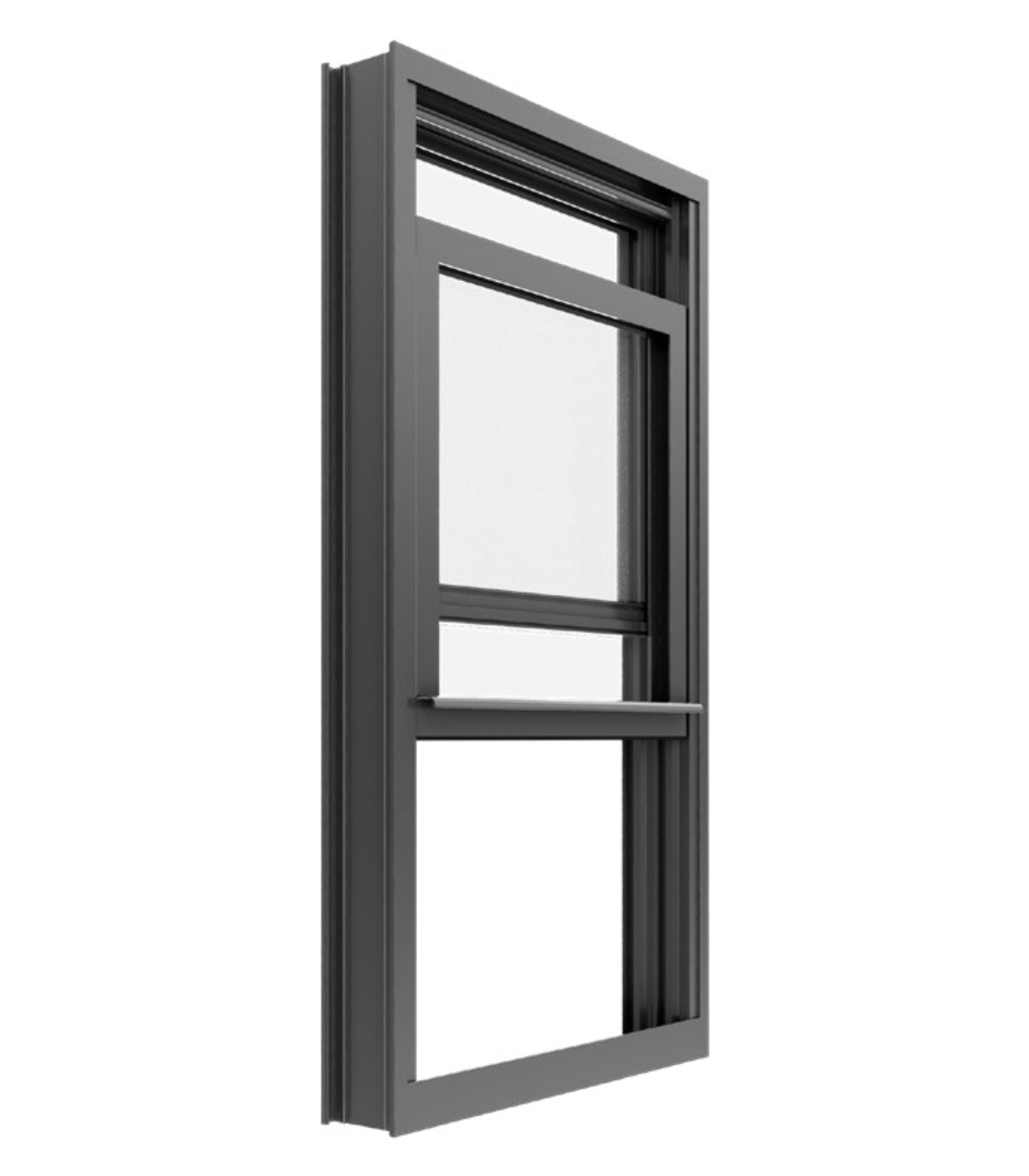

Product Overview - VLX 500 Single & Double Hung Window

The VLX 500 is built around a simple idea: a window should glide smoothly every time you open it, and it should stay beautiful for decades in a subtropical climate. The frame is extruded aluminum with a 0.079-inch wall thickness, which gives it structural rigidity without the bulk of older aluminum windows from the 1980s and 90s that you still see on many Plantation homes. Those older units were often single-pane, uninsulated, and prone to condensation. The VLX 500 replaces all of that with a modern thermal-break design that separates interior and exterior metal, reducing heat transfer through the frame itself.

Where does this window fit architecturally? Single hung and double hung windows are the most common replacement window style in Plantation’s established subdivisions, where ranch homes and two-story colonials dominate. The vertical proportions match the tall, narrow openings found in these houses. The double hung configuration lets you open both the top and bottom sash, which improves airflow, a real benefit during the months when you want cross-ventilation from the afternoon breeze off the Everglades. The tilt-in sash mechanism means you clean both sides of the glass from inside your living room, no ladder, no pressure washing from the outside. For a two-story home on a canal lot in Plantation, that feature alone saves hours of work every year.

Why do buyers pick this over other hung windows? Longevity in coastal air. Aluminum doesn’t absorb moisture the way wood does, and it doesn’t expand and contract like vinyl in direct sun. With the finishes available on the VLX 500, including a wood-grain-look option, you get the aesthetic of wood without the maintenance. Our customers in Plantation often tell us the same thing: they want to replace their windows once and not think about them again for 20 or 30 years. That’s what this series is engineered for.

Technical Specifications

Here’s what you’re getting with the VLX 500, in plain terms. The profile width measures 2.36 inches, which gives the frame a substantial, defined look while leaving maximum glass area for views and light. The 0.079-inch wall thickness provides the strength to resist racking and bowing during installation and in high-wind conditions. You have six finish options, five glass types, and two screen configurations to choose from.

• Frame wall thickness: 0.079 inches (structural-grade aluminum extrusion)
• Profile width: 2.36 inches (sightline-optimized frame)
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated available)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Half-screen (lower sash only) or full screen (entire opening)
• Operation: Bottom sash vertical glide on single hung; both sashes glide on double hung
• Cleaning: Dual tilt-in sashes on double hung; single tilt-in on single hung
• Thermal performance: NFRC-rated with thermal break technology
• Installation standard: AAMA 2400/2410 compliant installation methods
• Perimeter sealing: AAMA 812 low-expansion foam sealant on all joints

Performance Features

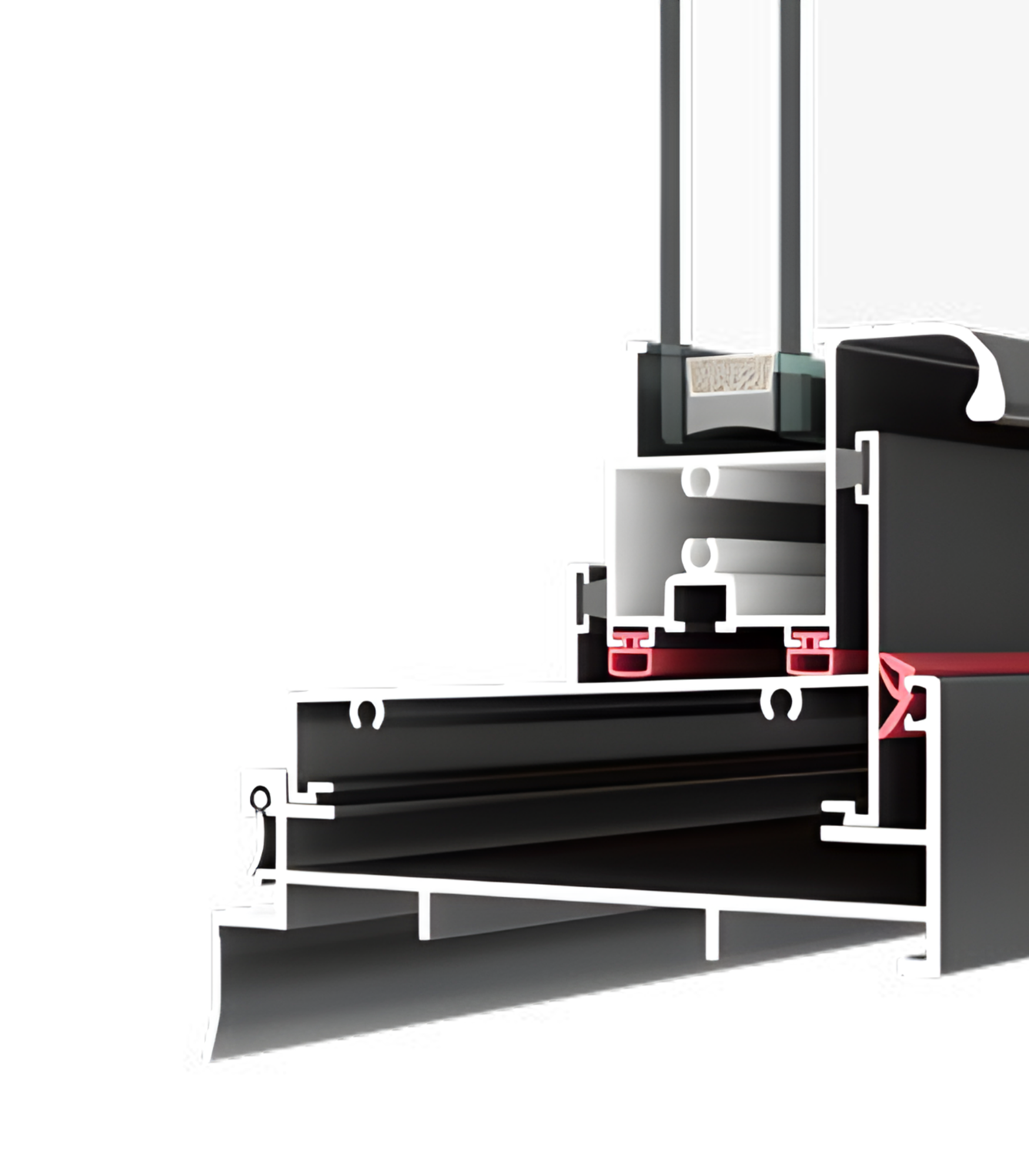

Thermal Efficiency. The thermal break in the VLX 500 frame separates the interior and exterior aluminum components, interrupting conductive heat flow. Combined with Low-E glass, this reduces heat gain through your Plantation windows during the long summer months and keeps conditioned air inside. NFRC ratings document the performance, and our team can walk you through the numbers for your specific glass selection.

Acoustic Performance. Laminated glass adds meaningful sound dampening. For Plantation homes near University Drive, I-595, or the Florida Turnpike, the difference between standard clear glass and laminated is noticeable immediately. Traffic noise, barking dogs, and lawn equipment all get muted. Laminated glass works by sandwiching a PVB interlayer between two panes, which absorbs vibration rather than transmitting it through the glass surface.

Airtightness & Weather Seal. The VLX 500 achieves its airtightness rating through interlocking meeting rails on double hung configurations and continuous compression gaskets around both sashes. When closed and locked, the weatherstripping compresses evenly, which prevents drafts in the winter and air leakage that drives up humidity and AC loads in the summer. Airtight also means fewer opportunities for insects to work their way inside, which matters in Plantation’s climate.

Waterproofing. South Florida gets roughly 60 inches of rain a year. The VLX 500’s sill design channels water outward through built-in weep systems, and the interlocking frame corners prevent capillary draw. During installation, our team applies AAMA 812-compliant low-expansion foam sealant on the entire perimeter, then flashes and trims the exterior. That combination of factory water management and proper site sealing is what keeps stucco, drywall, and flooring dry over decades of afternoon thunderstorms.

Wind Resistance. ViewLux builds the VLX 500 to meet wind-load requirements for South Florida’s building zone, and we order each unit with the correct design pressure rating for its size and location in your Plantation home. For areas closer to the coast or for higher-value insurance discounts, laminated impact-rated glass adds protection against windborne debris. We’ll confirm your specific wind zone requirements during the quote process.

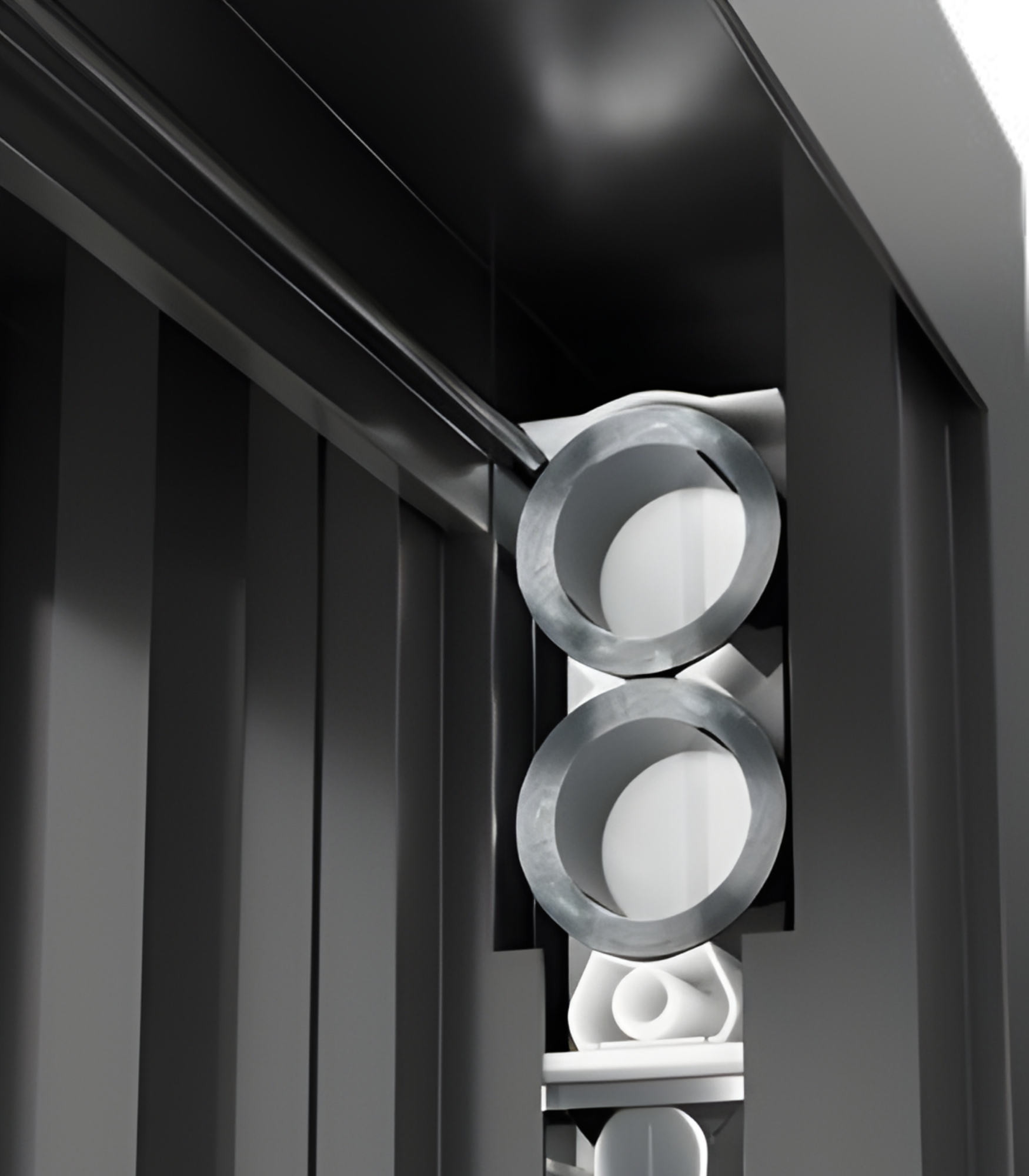

Security & Hardware. The cam-action locking mechanism pulls both sashes tightly against the frame, which improves both the airtight seal and resistance to forced entry. The 0.079-inch frame wall thickness means the lock screws are anchored in real structural aluminum, not thin roll-formed metal. On single hung units, the top sash is fixed and cannot be pried open. On double hung models, the dual locks on the meeting rail secure both sashes together.

Color & Glass Options

Six finishes give you real design flexibility for your Plantation home. Pure White is the classic Florida look, bright against stucco or painted brick, and the easiest to match with existing interior trim. Premium Black has become the top choice for modern farmhouse and contemporary renovations, offering a strong contrast against light exteriors. Anodized Silver gives a crisp, metallic finish that resists pitting and looks right on mid-century homes. Bronze and Champagne are warmer metallics that pair well with earth-tone exteriors and brown roof tiles. If you’re matching wood trim or want warmth without real wood, Teak Wood is a powder-coated finish that replicates the grain and tone of teak, a smart option for Plantation’s established neighborhoods where traditional aesthetics are prized.

Glass selection depends on what each room needs. Clear is the baseline, best for maximum visible light. Frosted works well in bathrooms, side yards, or any window facing a neighbor’s wall. Low-E is our default recommendation in Florida because it reflects infrared heat outward while letting visible light through, with measurable energy savings over clear glass on western and southern exposures. Tempered glass is safety-rated and required by code for windows near doors, low to the floor, and certain bathroom locations. Laminated adds impact resistance and sound control. Many Plantation homeowners combine Low-E and laminated for both energy and storm performance.

Installation by TruePane Windows & Doors in Plantation

We install the VLX 500 the way it was engineered to be installed, which almost never happens when a general contractor or handyman handles the job. Here’s the thing: aluminum window performance depends entirely on the seal between the frame and the rough opening. If that seal fails, you get air leaks, water intrusion, and mold inside the wall cavity. The factory warranty doesn’t cover failures caused by poor installation, which is why cutting corners on labor to save a few hundred dollars ends up costing thousands later. A failed window replacement in Plantation is not something we’d wish on anyone.

Our process starts with an inspection of the existing opening. We check the rough framing for rot, termite damage, and out-of-square conditions before we order anything. When the windows arrive, we set each unit level, plumb, and square, shimming the frame so the sashes glide perfectly without binding. We don’t force the frame into an out-of-square opening and call it good. The perimeter is sealed with AAMA 812 low-expansion foam, which fills gaps without bowing the frame, then flashed and trimmed to shed water. Every installation follows AAMA 2400/2410 guidelines, the voluntary standard that goes beyond basic code compliance.

Plantation specific: older homes here often have rough openings that have shifted over 30 or 40 years, and the humidity accelerates deterioration of any old wood surrounding the window. If we find sill rot, we address it before the new window goes in. We also verify that window locations requiring tempered glass under Florida Building Code are correctly identified and glazed. After installation, we run a water check on every unit, test the sash operation with you, and clean up the work area. You should never know we were there except for the new windows.

Frequently Asked Questions - VLX 500 Single & Double Hung Window

Get a Quote - VLX 500 Single & Double Hung Window in Plantation

Ready to replace the windows in your Plantation home with the VLX 500? We’ll measure every opening, review glass and finish options for your specific elevations, and give you a written line-item quote with no obligation. Factory ordering and AAMA-standard installation are handled by our own crew, start to finish. Call TruePane Windows & Doors at (772) 577-2915 to schedule your free on-site measurement and project estimate.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Plantation, FL.
